DIVER SAFETY must be the foremost concern for dive boat operators around the WORLD. Our Acoustic Diver Recall Systems use state of the art underwater speakers and standard off-the-shelf electronics, resulting in a cost effective system for a variety of uses in DIVER RECALL.

Potential System Users:

  • SCUBA instructors and divemasters
  • College and University SCUBA diving programs
  • Aquarium Dive Programs
  • Natatorium and YMCA SCUBA programs
  • AQUADANCE, Synchronized Swimming and physical therapy programs (underwater relaxation for stress)
  • Underwater videographers/filmmakers for underwater film directing, etc.
  • Dive charter boat operators/captains
  • Research scientists (underwater acoustics)
  • Marine archaeologists and treasure hunters
  • Marine biologists (aquaculture, fish farming, etc.)
  • Underwater music for divers and swimmers (entertainment and relaxation)
  • Homeland Mobile Safety and Security Teams for Port/Harbor Security
  • System component for underwater ROV security vehicles
  • Home Land Port and Harbor Security — MSST’s, Police and Fire
  • Rescue dive teams
  • Manned submersible and ROV operators
  • Commercial divers and sport divers
  • Commercial fishermen (attracting marine life)
  • Shark, whale and dolphin diving expeditions
  • Marine mammal acoustic research programs (dolphins, whales, etc.)
  • Underwater hockey, competitive swimming programs
  • US Military (MDSU, EOD, Special Forces) and Foreign military dive team training
  • TECH Divers (Nitrox, decompression diving, wreck diving, mixed-gas diving, rebreather diving and for TECH diving training programs)

PATRIOT Acoustic Diver Recall System
DRS-8-003/SA430 MOD 2 Version

US NAVY APPROVED

Download information sheet on the OCEANEARS Patriot System.

FEATURES:

  • NO RECEIVER REQUIRED.
  • Underwater Speaker will not corrode if used in seawater since PVC and Epoxy Materials are used in it’s construction.
  • Transmits both voice and five(5) alarm signals (horn, siren, wail, yelp and phaser).
  • Up to 2000 feet effective recall range underwater.
  • For surface vessel, habitat, submersible, ROV, pool or on-shore operation.
  • Installed in PELICAN 2200i Series Storm Case.
  • Can accept radio and PA system input.
  • Handheld microphone with push-to-talk included with system for underwater public address capability.
  • Audio Input for connecting an external music source (I-Pod, MP3 Player, Bluetooth Receiver, etc.)
  • State of the art piezoelectric underwater speaker – DRS-8 Mod 2 Version FIVE YEAR LIMITED WARRANTY.
  • Off-the-shelf CARSON siren/amplifier electronics
  • ONE YEAR LIMITED WARRANTY on system electronics.
  • RELIABLE, LOW-COST, and ECONOMICAL RECALL SYSTEM!
  • MADE IN THE USA!
  • U.S. NAVY APPROVED – ANU.

RETAIL PRICE: US $4395.00 plus shipping.

CLASSIC Acoustic Diver Recall System
DRS-8-003/SA400

OceanEars DRS-8-003 SA430 Patriot System

The Leading Diver Recall System in the World

Download the information sheet for the OCEANEARS Classic System.

OCEANEARS DRS-8-003/SA400 CLASSIC Acoustic Diver Recall System is now the leading diver recall system in the World and can be purchased for use by Dive Teams around the World.

FEATURES:

  • 100 Watts – Siren Power
  • FIVE Tones/Sirens
  • 2000 feet recall range
  • Operates on 12 VDC.
  • NO RECEIVER REQUIRED TO HEAR TONES or VOICE TRANSMISSIONS!
  • ONE Year Warranty
  • External Audio Input (OPTIONAL Blue Tooth Module for connecting to a Smartphone, etc.)
  • 750+ feet voice transmission range using PTT Hand Held Microphone / 40 Watt amplifier in PA Mode.
  • Recall Electronics in YELLOW PELICAN 1450 Case
  • Includes 12V DC 7-amp/hour Rechargeable Battery.
  • Supplied with battery charger.
  • 50 feet of cable with Amphenol ECO-MATE Connector.
  • OPTIONAL PVC Cage for DRS-8 underwater speaker (US $150.00)
    MADE in AMERICA.
    Retail PRICE: US $2595.00 plus shipping.

SPECIFICATIONS:

  • Siren/Amplifier output power of 100 watts.
  • PA/Radio Mode output power of 40 watts.
  • Underwater Speaker depth rated to 100 feet.
  • Deeper depth with pressure compensation.
  • Underwater Speaker weight in air is less than 8 pounds without cable.
    Supplied with 50 feet of cable. Amphenol ECO-MATE connectors used.
  • Up to 2000 feet effective range in air horn, siren, wail, yelp and phaser.
  • Voice range approximately 750 feet (depends on conditions).
  • 12-volt DC battery operation. Rechargeable 12-volt 7-amp/hour battery.
  • Supplied with 12V DC battery charger.
Diver Recall Systems - OceanEars

STANDARD Acoustic Diver Recall System DRS-8-003/SA400

OceanEars DRS-8-003 Diver Recall System

FEATURES:

  • NO RECEIVER REQUIRED.
  • Transmits both voice and 5 alarm signals (horn, siren, wail, yelp and phaser.).
  • Up to 2000-feet effective recall range underwater.
  • For surface vessel, habitat, submersible, ROV, pool or on-shore operation.
  • Can accept radio and PA system input.
  • Handheld microphone included with system for underwater public address capability.
  • State of the art piezoelectric underwater speaker with FIVE YEAR LIMITED WARRANTY.
  • CARSON siren/amplifier electronics (ONE YEAR LIMITED WARRANTY).
  • RELIABLE, LOW-COST, and ECONOMICAL RECALL SYSTEM!
  • MADE IN THE USA!

Retail PRICE: U.S. $1695.00 plus shipping.

SPECIFICATIONS:

  • Amplifier output power of 100 watts.
  • Underwater Speaker depth rated to 100-feet.
  • Underwater Speaker weight in air is less than 6 pounds without cable.
  • Up to 2000-feet effective range in air horn, siren, wail, yelp and phaser.
  • 12-volt DC battery operation.
  • MADE IN THE USA!

SA-400 Siren/Amplifier, Audio Isolation Impedance Matching Transformer Assembly, DRS-8 Underwater Speaker with 50 feet of cable and Pin Suspension Design. Operates to a depth of 100 feet uncompensated. FIVE Year Warranty on complete system. MADE in USA. Download information sheet on the DRS-8-003.

OceanEars DRS-8-003 SA400 Standard Diver Recall System

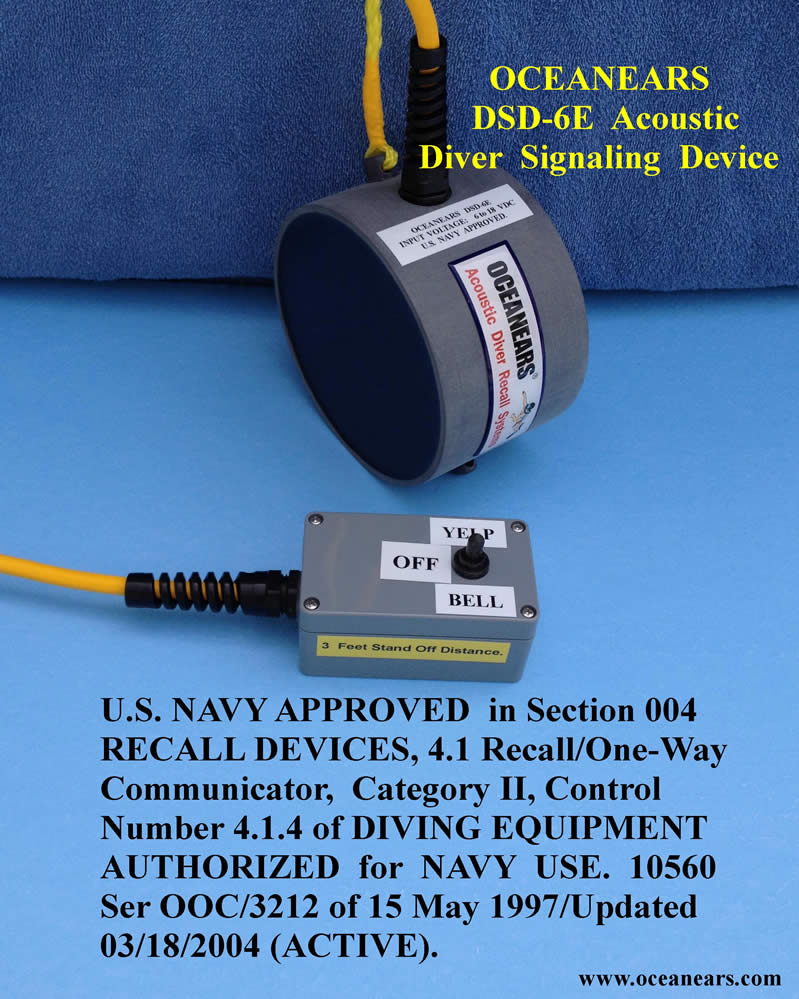

DSD-6E Acoustic Diver Signaling Device

OceanEars DSD-6E Acoustic Diver Signaling Device

US Navy APPROVED (ANU) acoustic diver signaling device with external 18 VDC Battery Pack and YELP and HI-LO Sounds. The O.E. ENTERPRISES DSD-6E Acoustic Diver Signaling Device meets the need for a Quality, NON-EXPLOSIVE, U.S. NAVY APPROVED underwater signaling device for dive operations. It’s portable and affordable and NON-Explosive! Download the information sheet on the DSD-6E.

FEATURES:

U.S. NAVY APPROVED in Section 004 RECALL DEVICES, 4.1 Recall/One-Way Communicator, Category II,
Control Number 4.1.4 of DIVING EQUIPMENT AUTHORIZED for NAVY USE. 10560 Ser OOC/3212 of 15 May 1997/Updated 03/18/2004 (ACTIVE).
For surface vessel, habitat, pool or on-shore operation. Easily transported from site to site.
USED by EOD, SEALS, MDSU 1, MDSU 2, NOAA, Deep Submergence Unit, Dive lockers on Nuke Subs and US Army Special Forces Units.
Long life construction with PVC and epoxy.
WILL NOT RUST OR CORRODE, even if used in salt water.
No exposed metal in the water, reducing the potential for electric shock.
No voice coil to burn out. A NON-EXPLOSIVE Diver Signaling Device.
Depth capability of 50 feet.
Range of 200-300 feet (omni-directional transmit pattern).
State of the art piezoelectric self contained underwater speaker.
NO receiver required to hear the YELP or HI-LO Sounds underwater!
Siren electronics are housed within the underwater speaker
No surface electronics to get wet. Toggle Switch with rubber boot.
Transmit a YELP or HI-LO sounds for Diver Recall.
ONE YEAR WARRANTY.
RELIABLE, PORTABLE, AND AFFORDABLE DIVER RECALL for the US NAVY Dive Locker!!
MADE IN THE USA.
Retail PRICE: US $1350.00 plus shipping.

SPECS:

Depth capability of 50 feet.
Range of 200-300 feet (omni-directional transmit pattern).
External Attached 18V DC Battery Pack with two 9 volts alkaline batteries wired in SERIES.
Diameter: 6.5 inches.
Axial Length: 3.8 inches.
Cable Length: 50 feet.
Weight: 11 pounds
National Stock Number (NSN): 6350015727542 Part Number: DSD-6E
ALARM SET – PERSONNEL — Part Number: DSD-6E

Contact OCEANEARS, tell us about your project, and we can custom build
an underwater sound system to fit your specific needs!
